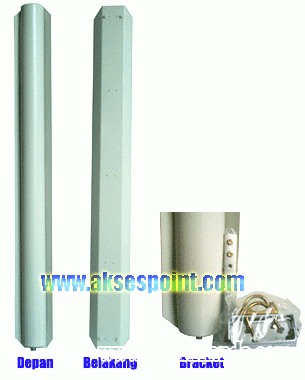

Antenna Sectoral ini memiliki Gain 20 dBi dengan polarisasi Vertikal. Sangat cocok digunakan untuk berbagai macam aplikasi seperti WISP, Rt-Rw Net, Hotspot, dll.
Kompatibel dengan berbagai macam Wireless 5,8 Ghz baik type B,G, maupun N.
APLIKASI PENGGUNAAN :
- Applications: 5,8 GHz ISM Band
- IEEE 802.11a, 802.11n Wireless LAN
- Bluetooth®
- Public Wireless Hotspot
- WiFi
- Wireless Video Systems
- Multipoint Applications
- Superior performance
- All weather operation
- Integral N-Female connector
Spesifikasi OEM2058-90:
| Spesifikasi OEM2058-90AS |
| Frequency | : 5725-5850 MHz |
| Gain | : 20 dBi |
|---|---|
| Polarization | : Vertical |
| Vertical Beam Width | : +/- 6.5° |
| Horizontal Beam Width | : 90° |
| Impedance | : 50 Ohm |
| Max. Input Power | : 100 Watts |
| VSWR | : < 1.5 |
| Connector | : N-Female |
| Weight | : 2.5 kg |
| Length | : 65 cm x 8 cm x 5cm |
